Exploring extreme microbes in Antarctica with extremely fast sequencing technology

On January 14, 2023, I had the opportunity to visit Antarctica with a cohort of invited speakers for an event called ‘Congreso Futuro’ in Chile. For the excursion, I teamed up with another scientist, Matías Gutiérrez, to perform ultra-fast DNA sequencing on-site, using entirely portable laboratory equipment. The objective was to demonstrate that it was possible to collect a small amount of the Antarctic soil and begin sequencing genetic information of the microbes present within the environment, all in less than one hour.

Holding up the portable ‘MinION Mk1C’ device in Antarctica. The screen shows a live interface of the DNA sequencing taking place right then and there.

Upon arrival, we managed to analyze environmental samples associated with moss and lichen, which we collected near the Professor Julio Escudero base of the Chilean Antarctic Institute. Historically, an experiment like this could take several weeks from sample collection in a remote area to analysis in a molecular biology laboratory. Obtaining the answers to research questions in extreme places like Antarctica allows scientists to investigate and ask new questions while still there.

Matías Gutiérrez explained “This is a great milestone given that it is the first time that such rapid sequencing has been carried out in the Chilean Antarctic, but also and perhaps more important is demonstrating that any Chilean scientist can study the genetics of any biological sample, anywhere and at any time. Carrying out this sequencing in the Chilean Antarctic is a powerful testimony to the potential of this technology.”

Moss and lichens native to Antarctica. Life can not only survive in this extreme environment, it can thrive.

Why might we care about microbes that live in Antarctica? Well, no doubt Antarctica is an extreme environment. But life can still thrive here. Scientists investigate these organisms to unlock the secrets of their adaptations, such as the ability to survive incredibly cold temperatures and high levels of radiation, and we believe nanopore sequencing is a powerful tool in this toolkit to improve access to genomics and explore life on earth.

However, time is not on our side. In light of climate change, we must seek to speed up the process of scientific inquiry and make access to tools more equitable. Especially in remote regions of the planet like Antarctica, where we have probably only scratched the surface of biodiversity. This is where miniaturized and accessible sequencing technology can play a critical role, serving as a powerful tool that improves access to genomics and enables scientists around the world to obtain their own DNA sequencing devices and explore life on Earth. Even in places as remote as Antarctica.

Aaron and Matias showcasing the live DNA sequencing run, which was initiated within one hour of collecting samples in Antarctica.

The following week during the official Congreso Futuro event, the President of Chile, Gabriel Boric, hosted guest speakers one evening. While there, we had the opportunity to meet President Boric, discussed the potential of democratizing genomics, and introduced him to the portable MinION device. He was incredibly impressed by the technology and the implications of accessible DNA sequencing, especially for biodiversity and science education. During the event, President Boric noted that Chile’s 2023 budget features a 13.3 percent increase in science investment, a sign that his administration “has the conviction that science and knowledge are the pillar of our development.”

The President of Chile holding the MinION device

Finally, on Friday January 20, I delivered our invited speaker presentation, which was live streamed with >20,000 views, and the recordings are on YouTube. I’ve linked the portion of my presentation which starts at ~3:27:22 in and goes until 3:43:57 here: https://www.youtube.com/live/2hfcow4EhXo?feature=share&t=12442

Presenting at Congreso Futuro on the topic of ‘Democratizing genomics, from the Amazon to Antarctica and beyond’

The main theme of the talk was centered around how we are experiencing a revolution in our ability to obtain and understand biological information like never before, and this is in part because the tools to acquire this information, especially the information of the genome, are becoming more accessible than ever before.

We are all familiar with how computing has evolved, from what initially started out as large and complicated devices that were inaccessible to the majority. In contrast, we’re all quite aware how this has changed - we all have cell phones in our pockets now, and this has fundamentally changed our lives, especially by giving us access to digital information like never before.

Similarly, DNA sequencing technologies have also evolved. What started out as very large and expensive devices, that were relegated to a few institutions that could access these tools. But we’ve come a long way since then, and indeed we’ve also gotten to the point now where these devices for DNA sequencing can be used in the lab and even out in the field. We are beginning to realize the potential of “enabling the analysis of anything, by anyone, anywhere.“

We are thankful for the invitation and opportunity to participate in Congreso Futuro, and would like to also acknowledge the Chilean Antarctic Institute (INACH) and the Chilean Armed Forces for logistical and field support to Antarctica.

From Snakes to Sequences in 24 Hours: Success!

As I type up my notes from the field, I can only imagine what Darwin would think about the advancements in technology used to answer questions about evolutionary biology today...

7/11/17 6:00 AM

We hit the ground running after sharing the last post at the airport.  Landing at around 6:00 AM in Quito, Ecuador, we were greeted by our collaborators Lucas Bustamante (Tropical Herping) and Dr. David Salazar (Universidad Indoamerica), threw our gear in the truck, and swung by the University lab to pick up our final crew member, Nicolás Peñafiel. All the equipment and reagents for sequencing appeared to have traveled well on ice packs (at least we hoped so!), so we transferred our frozen material into a cooler and were off to the Chocó rainforest of Ecuador.

The "boat" responsible for transferring our vehicle across the Canandé river

7/11/17 3:00 PM

After several hours of driving through bumpy jungle roads and crossing the Canandé river on a questionable boat, we arrived at the small lodge nestled in the Chocó rainforest and rendezvoused with the rest of the team, who arrived a couple days ahead of us, including Alejandro Arteaga, Frank Pichardo, and Cesar Barrio Amorós.

Our goal was to survey the region for unique reptiles and amphibians and use the portable laboratory to sequence DNA right there in the field, so no time to waste! Nico and I unpacked the lab equipment and at around 8:24 PM began a few DNA extractions on a whip snake sample using a salt extraction protocol and the DNeasy kit protocol. Then as night fell, we grabbed our headlamps and were out in search of new targets. After several hours spotting numerous frogs and geckos, Frank stumbled upon a gorgeous eyelash viper just off trail.

Eyelash viper posing on the MinION DNA sequencer

A beautiful shot of our viper next to the MinION by Lucas Bustamante

7/11/17 11:34 PM

Back at the lodge that evening, we prepped a PCR run using the miniPCR and let it go overnight. Time for some rest.

7/12/17 10:15 AM

While Alejandro took digital white background images of the animals from last night, Nico and I made a gel to visualize the PCR product. The small electrophoresis chamber Nico brought from the lab worked well, but unfortunately my small UV flashlight was unable to really pick up fluorescence in the gel to visualize amplicons. I had tested this out briefly in the US before the trip and was able to pick up bands in a pitch black room, but I think the UV light wasn't quite strong enough under field conditions. Some of the bands appeared to be there which was encouraging, but next time I think it would be beneficial to tinker with a small transilluminator like the one also made by miniPCR.

7/12/17 11:30 AM

Alejandro wrapped up processing his specimens and extracting a small amount of blood or tail tissue from each, so I got to work extracting DNA for the eyelash viper and dwarf geckos. The extraction process with the DNeasy kit is easy (as the name implies!); as for equipment just requires a small centrifuge and the reagents can be stored at room temperature. After about an hour we had our fresh DNA samples.

Part of the DNA extraction and PCR set-up at our field site.

1:07 PM

Next I got started with a new round of PCR using primers for genes for 16S, cytb and ND4. These primers don't all necessarily have the same PCR conditions (such as annealing temperature) but for the sake of time and limitations with one miniPCR, I ran them together under the same settings.

3:25 PM

After a couple hours of PCR cycles, it was time for the second PCR barcding step. I used barcodes 1 through 8 for the samples and ran the new PCR protocol.

4:30 PM

Finally, it was time to start the library preparation for the nanopore sequencer using the SQK-LSK 1D kit. This involves the end-prep, adapter ligation and bead cleanup. Next it was time to prime the flow cell and load the sample.

The MinION (top) and miniPCR (bottom) make a great portable duo!

6:24 PM

I clicked "execute" for the MinKNOW software, began the sequencing run and said 'hold on to your butts' (one of my favorite quotes from Jurassic Park).

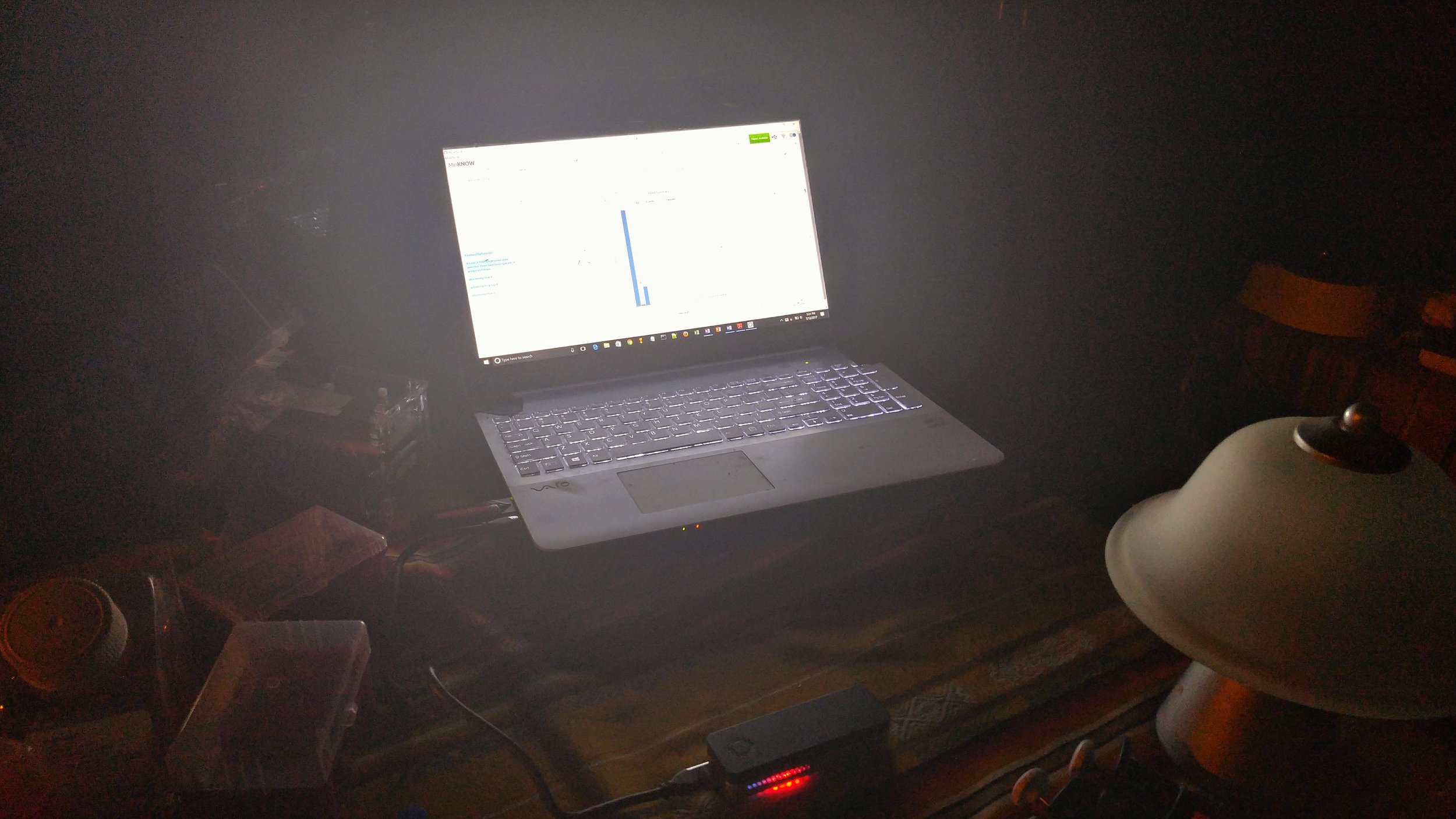

The MinION sequencer glowing red and blue as it runs off the power of my laptop.

Some of the sequence data produced from the MinION sequencer.

7:20 PM

After about an hour, I stopped the run after 16,484 reads had been generated, and ran the data through the Albacore program to demultiplex the reads into their individual barcode folders. I then took a peak in the barcodes and was excited to see the read lengths looked correct, so I downloaded barcode 1 and passed it along to Alejandro's laptop. Barcode 1 was the 16S sequence for the eyelash viper and Alejandro had a nice reference database on his laptop to compare the nanopore sequence to. After a few minutes of tinkering, Ale said "yes, it falls out with Bothriechis schlegelii!". This was it! The nanopore barcode was a complete match to the correct species!

BLAST hit result using a consensus read from the nanopore 16S barcode, which is a 98% match to the correct viper species. It will be interesting to see if the 2% difference is due to individual genetic variation, or if the difference is due to nanopore sequence error, which will be verified with Sanger sequencing of the same individual.

Components of the portable lab used on the trip. Left to right: miniPCR sitting atop the Poweradd battery, Vaio laptop with Geneious pro software to visualize sequence data, and the ONT MinION sequencer powered by the laptop.

In less than 24 hours from arriving at the field site and sampling snakes and geckos during our first night in the rainforest, we could verify species identification by creating a nanopore consensus and mapping to a pre-downloaded reference database. Now we are also verifying if some species collected are undescribed back at a lab in Quito, and will have everything Sanger sequenced to verify nanopore quality.

9:30 PM

After getting back from the field, Stefan set out to process the reads. While Geneious is good enough for a quick peek, it cannot deal with Nanopore-specific errors. After some quick tests using reference-based mapping (using bwa mem, samtools, angsd and nanopolish) it was clear we got good consensus sequences for all the 16S and the ND4 genes! However, CytB and COI did not amplify, which we verified on a gel back at Quito university a few days later, likely because we didn't have time to run multiple PCRs under optimal contitions for all the genes. Stefan then worked on tweaking de-novo assembly tools such as Canu and Allele Wrangler, to create consensus sequences without reference bias. All sequences from the field were later processed with Canu, which turned out to work pretty well for amplicon assembly.

Stefan working on his nanopore bioinformatics in the jungle.

Overall, we believe this is important becuase the Ecuadorian Chocó is a biodiversity hotspot which has lost more than 98% of habitat due in large part  to logging and palm oil agriculture. Rapid sequencing can be a useful  tool to better understand the diversity of life on our planet and use  that information for conservation. Furthermore, researchers in Quito do not have access to a Sanger sequencer let alone Next Generation Sequencing platforms within the country. Thus, Oxford Nanopore MinION sequencing enables them to rapidly process samples without the need to send them off internationally.

Some of the expedition team members! Left to right: Alejandro, Aaron, Frank and Lucas

Right now I'm still feeling a bit of relief and excitement that everything worked in one go in the field. This was an idea that I've been hoping to execute for a while now, and this seemed like the opportune time with a grant funding the project from National Geographic. The work isn't quite done yet, because we are verifying the quality of sequences, performing a few more experiments in lab, and writing all the methods and bioinformatics pipelines up for a publication with our Ecuadorian collaborators. While we quickly and successfully sequenced DNA in the field for correct species identification, this feels like just the beginning!

-Aaron & Stefan

Off to Ecuador: Portable DNA Sequencing for Rapid Species Identification in the Field

In the previous post I documented an experiment with the miniPCR amplifying barcodes to ultimately run on a portable gene sequencer (the MinION) developed by Oxford Nanopore Technologies. Here's the protocol on how I prepared the DNA for the MinION in a nutshell and how my colleague, Stefan Prost, and I have analyzed some of the data thus far.

First off, I pooled the 12 barcode PCR products from the miniPCR and began the library preparation using the 1D PCR barcoding amplicons (SQK-LSK108) Protocol. This has three primary steps, mainly End-prep, Adapter ligation, and AMpure XP bead binding. In the End-prep, you mix ~1 µg DNA with Ultra II End-prep reaction buffer & enzyme mix and heat for 5 minutes at 20 °C and 5 minutes at 65 °C, and clean with AMPure beads. Next, you mix the end-prepped DNA with Adapter mix, Blunt/TA Ligation master mix, wash with beads, add Adapter Bead Binding buffer, and elute. This all takes around a couple hours (although taking your time with the bead cleanups seems to help with DNA recovery) and now you’re ready to load the library-prepped DNA into the MinION flow cell!

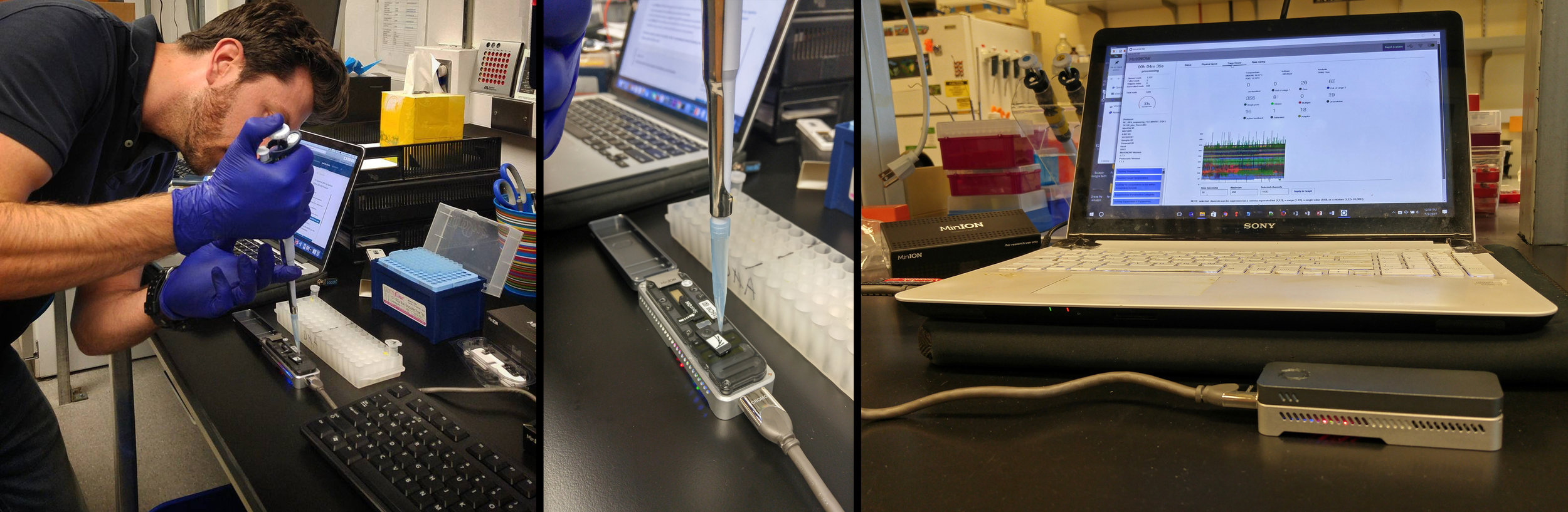

Loading the sample into the MinION DNA sequencer, which runs off the power of your laptop

I started the sequencing run using the MinKNOW software on 7/3/17. First off, the software determines how many active pores the flow cell contains, which looked pretty good: 497 active pores in group 1, 407 in group 2, 208 group 3, and 39 group 4. Then the run kicked off and the reads started flowing. About one hour in, roughly 15,000 reads had been produced, but it looked like my laptop was getting a bit sluggish (perhaps because I'm using an external SSD drive on my Vaio Sony laptop) and the pore count was dropping off. So I hit the stop acquire button, printed the MinKNOW report and the laptop seemed to catch up on the intensive computing required for the run. I saved the flow cell in the fridge and went on to check out the data from the reads.

Report given by MinKNOW. No surprise that most of the reads are short length (all the amplicons were ~600 bp to ~1.2 kb. The longer reads are likely the control DNA that ONT provides to run concurrently with your sample.

Stefan Prost working on creating a consensus for the nanopore barcode reads

The barcode reads were basecalled and then demultiplexed with a program called Albacore, which split up barcodes 1 – 12 into different folders. I grabbed a few raw sequences from barcode 1 (the ALS 16S gene), threw it into a BLAST search, and to my pleasant surprise got a snake 16S BLAST hit! Other barcodes appeared to get the correct match as well, which was really encouraging.

Screen shot of some of the raw barcode nanopore data

The next step was to create a consensus for the barcode reads. To do so, we first tested reference based mapping. We used two references, the same PCR amplicon sequenced with Sanger and a reference for a different species from the same genus downloaded from NCBI. We then mapped the reads with BWA mem, an algorithm that can handle divergent reads and sorted and processed the reads using Samtools. We then called the consensus using ANGSD or Geneious, and mapped the reads back to it for post-mapping polishing of the consenus sequence. We performed the polishing using Nanopolish. We then assessed the consensus sequence quality using the Sanger sequence. We see a low error rate for base calls after polishing. The only difference between mapping against the Sanger read and the downloaded reference, was that we missed three few basepair long indels, which weren't present in the downloaded reference (from a different species). We are currently exploring de-novo approaches to create consensus sequences without the use of a reference sequence, such as a program called Canu and the LAST aligment tool.

So overall, after a test trial using the MiniPCR and MinION, we're ready to hit the jungles of Ecuador for real-time portable DNA sequencing! The trial looked promising for basecalling amplicons used for species identification, now to see if we can do it all in the field. Heading to the airport now with Stefan and will post updates soon!

-Aaron Pomerantz & Stefan Prost
